Acoustics in Music studio

PTB Piano Studio used in 3rd Round Robin, 2002 conducted by PTB in Germany. This demo shows the agreement between the average of many measurements and the current release of Odeon.

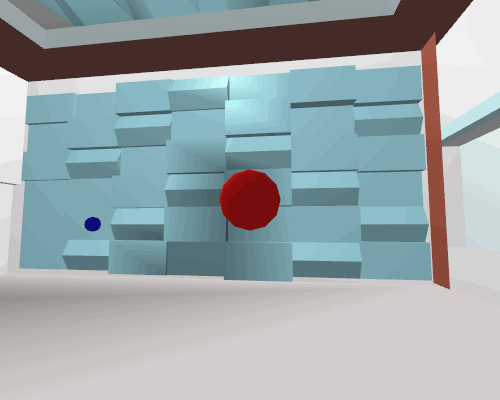

[1] Measurements were simulated in 6 source-receiver pairs – hear we are having a look from each receiver positionat each source as well as a look around the room.

[2] Wireframe of the PTB studio, displaying source and receiver positions.

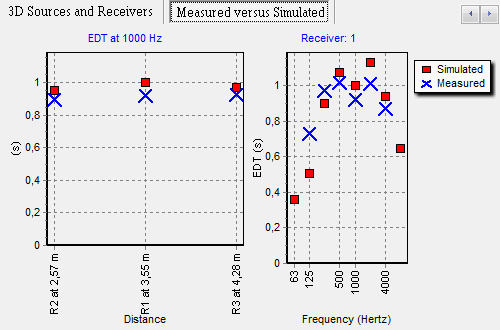

[3] Source 1 active. Examples of simulated room acoustic parameters compared to the real measured values.

[4] Source 2 active. Examples of simulated room acoustic parameters compared to the real measured values.

[5] 3D Billiard – illustrating how ODEON is capable to handle distance dependent scattering – small surfaces leads to high scattering although same scattering coefficient was applied to all surfaces.
