SS Serguis & Bacchus

Saint Sergius & Bacchus church from 527 was modelled as part of the CAHRISMA project (Conservation of the Acoustical Heritage by the Revival and Identification of the Sinan’s Mosques Acoustics). Sergius & Bacchus is a typical byzantine church, with a central dome and an ambulatorium. It has a reverberation time of around 3 sec (1000 Hz).

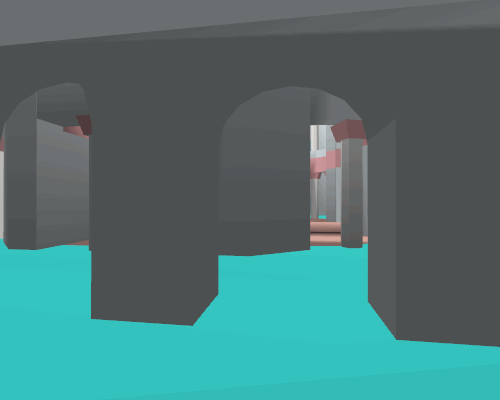

[1] Measurements were simulated with 2 sources in 10 receiver positions – here we are having a look from each receiver position, at each source and a look around the room.

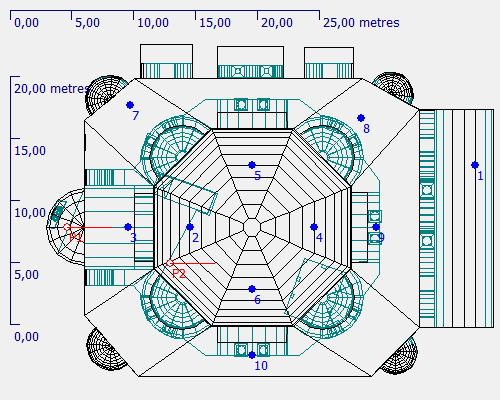

[2] Wireframe of SS Sergius & Bacchus, displaying source and receiver positions.

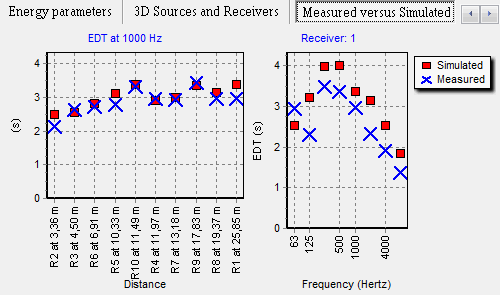

[3] Source 1 active. Examples of simulated room acoustic parameters compared to the real measured values.

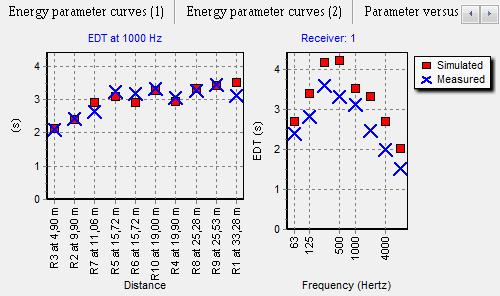

[4] Source 1 active. Examples of simulated room acoustic parameters compared to the real measured values.
